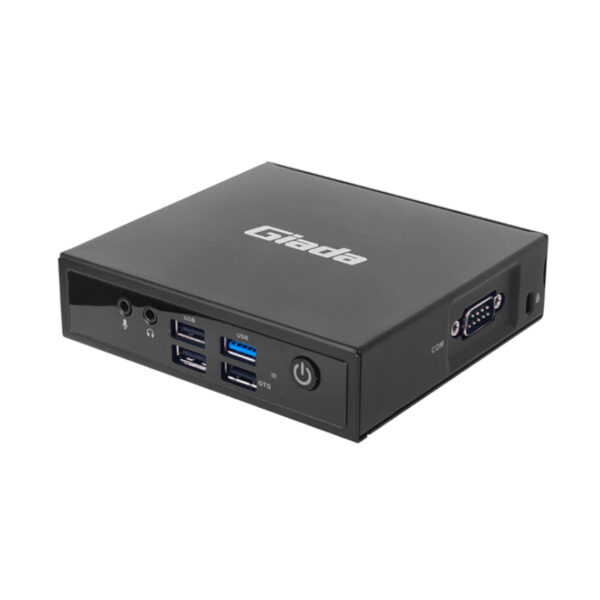

Giada DN73 RK3328 Android 7.1 16GB 2GB
R3 199,00
Out of stock
The Giada DN73 is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and fanless design brings organizations all the performance and efficiency of the RK3328 Quad-Core Cortex-A53 CPU, plus an HDMI output with up to 4K resolution support. Its HDMI, USB ports, OTG support, gigabit LAN, Android OS, and support for mini-PCIe 4G cards make it very versatile for a more mobile experience. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.
FEATURES:
- RK3328 Quad-core Cortex-A53 up to 1.5GHz
- Onboard DDR4 2GB Memory,
- 1 x HDMI， Supporting 4K 60Hz Display
- Onboard eMMC 16GB
- 1 x USB3.0，2 x USB2.0，1 x USB2.0 OTG，1 x RS232
- 1 x RJ45，1 x Mini-PCIe for 3G/4G，1 x SIM Slot
SPECIFICATIONS:
- Processor:
- CPU: RK3328 Quad-core Cortex-A53
- Frequency: Up to 1.5GHz
- Chipset: SOC
- Memory:
- Type: DDR4
- Socket: Onboard
- Max Size: 2GB (Optional: 1GB)
- Graphics:
- GPU: Mali-450MP2 GPU
- Graphic Engine: 4K H.264 30FPS/H.265 video decoder, 2160P video encoder/1080P 60fps video decoders
- HDMI: 1 x HDMI (Max. 4K @60Hz)
- Network:
- Controller: Realtek RTL8211E Gigabit Ethernet
- Interface: 1 x RJ45
- I/O:
- USB: 1 x USB 3.0, 2 x USB 2.0, 1 x USB2.0 OTG
- Display Interface: 1 x HDMI
- LAN: 1 x RJ45
- Serial Port: 1 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Mini-PCIe: 1 x Full-size Mini-PCIe for 3G/4G
- SIM: 1 x SIM Slot
- WiFi+BT on Board: 1 x WiFi Module Onboard (2.4G, IEEE802.11 a/b/g/n) Optional: WIFI 5G
- LED Indicators: 1 x HDD LED, 1 x Power LED
- Storage:
- eMMC: Onboard eMMC 16GB (Optional: 8GB /32GB/ 64GB)
- JAHC Tech:
- WatchDog Timer: 0~255 Second Time Out Support
- Auto Power On: Power Activated Automatically Start
- Remote Control: By IR Controller for Power On
- RTC: Set Up Independently Every day, A Week as a Cycle
- Operation System:
- Android: Android7.1 / Android 10.0
- Power:
- Power Type: DC-IN
- Input Voltage: 12V/2A
- Environment:
- Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
- Relative Humidity: 95%@40℃ (non-condensing)
- Certification: CE, FCC Class B
- Mounting: Desk/Wall Mounting and VESA Mounting Kit (JT-NUC-JC530)
- Construction: Metal
- Fanless: Yes
- Colour: Black
- Dimensions: 11.6 x 10.7 x 3 cm
WHAT’S IN THE BOX:
- Giada DN73 RK3328 Quad-Core Entry Level Signage Player – Black x1
- Power Cable x1
- User Manual x1
